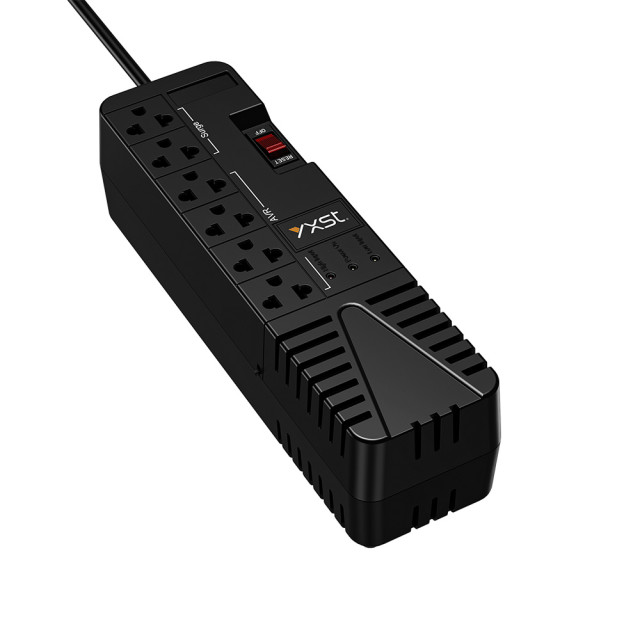

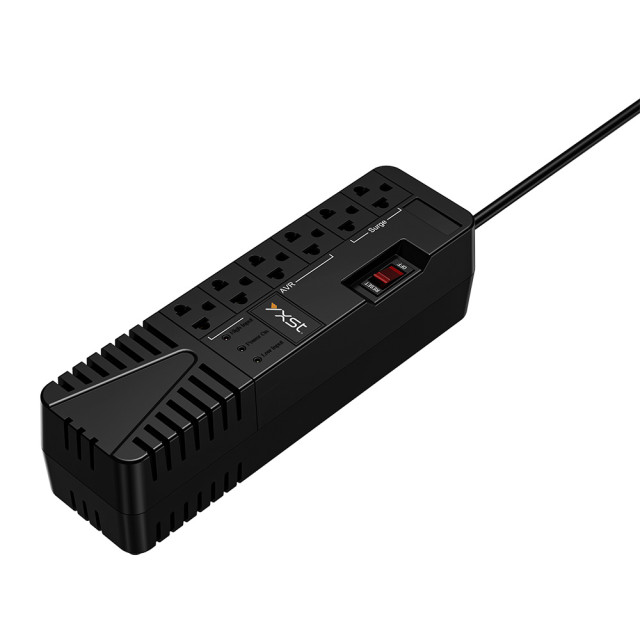

Yixing Electronic Technology produces a V2201 automatic voltage regulator（AVR） for video game consoles. Voltage stability is critical for video game consoles, as voltage fluctuations may cause problems such as degraded game performance, device damage, or data loss.
For video game consoles, choosing the right voltage regulator is very important. In addition to ensuring voltage stability, factors such as voltage regulator efficiency, heat dissipation performance, and compatibility with other game console components need to be considered.
Therefore, when purchasing or replacing a voltage regulator, it is recommended to consult a professional technician or refer to the recommendations of the game console manufacturer.
| MODEL | V2201 |
| CAPACITY | 600VA/300W |
| 900VA/450W | |
| INPUT | |
| Voltage | 120VAC |
| Voltage Range | 89-145Vac |
| Frequency | 50Hz/60Hz(autosensin) |
| Joules | 94J(14D391) |
| AC plug type | NEMA 5-15P |
| Output | |
| Steps of Regulation | 3(2-step Boost & 1-step Buck) |
| Output Voltage | 120VAC±10% |
| Max spike current | 3A\4A |
| Output Receptacles | Nema5-15R or Universal Nema: 4pcs AVR regulated plus surge protected+2pcs surge protected only |
| Protection | Overload/short circuit: manual reset circuit switch |
| Over-temperature protection: thermal switch | |
| Surge protection: 94 Joules | |
| 1 route 4 holes stable voltage output | |
| delay Time | 30S |
| STATUS INDICATORS | |
| High Input | Red |
| Power On | Green |
| Low Input | Yellow |
| ENVIRONMENT | |
| Humidity | 0-95%(Non-condensing) |
| Noise Level | Less than 40dB at 1M |
| Package info | Capacity | Carton | Quantity | G.W | Single Pack |
| 300W | 51.5*33.8*34.8CM | 24PCS | 24.4kgs | Color Box |
