Voltage Protector For Wall-Mounted Air Conditioner 1507

Voltage Protector For Wall-Mounted Air Conditioner 1507

Voltage protector for wall-mounted air conditioner 1507 combines intelligent monitoring, voltage overvoltage and undervoltage protection, delayed start and other functions to effectively prevent damage to equipment caused by voltage fluctuations. Whether it is a central air conditioner or a wall-mounted air conditioner, the 1507 Air Conditioner voltage protector can provide additional electrical protection and extend the service life of the equipment.

Online Inquiry

Product Detail

Applicable scope
Instruction
Specifications

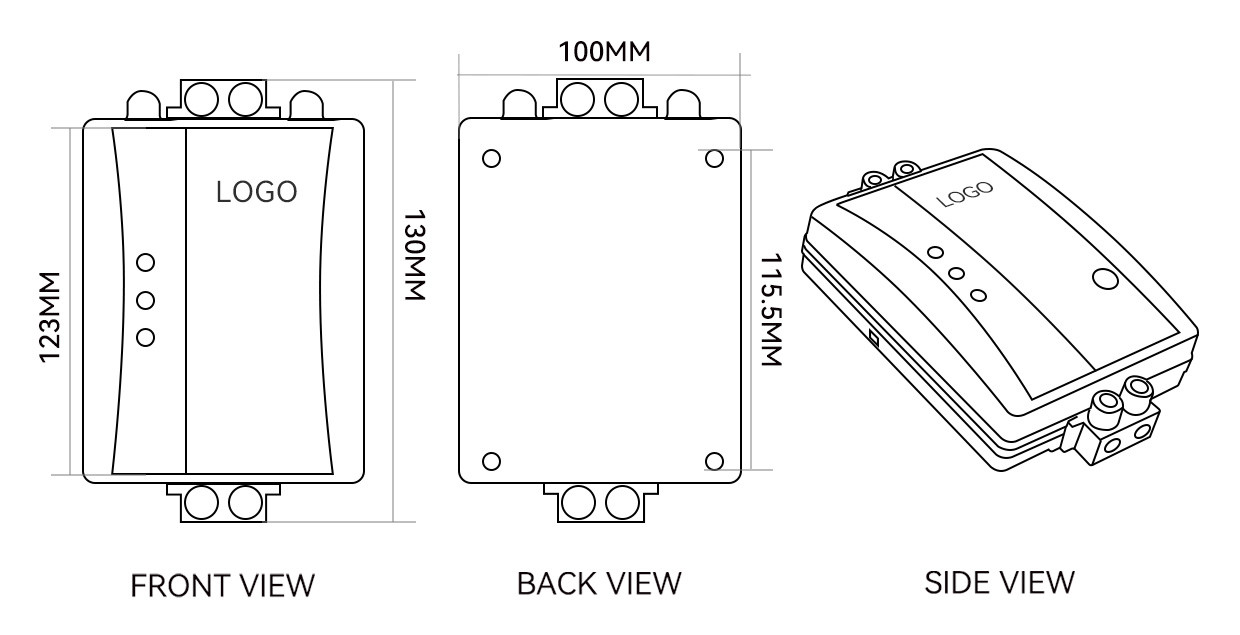

Dimension
Package
Blog

Single-phase Voltage Protector 1507 Applicable scope:

Large central air conditioners:

Central air conditioners usually require a relatively stable power supply. Voltage protectors ensure the normal operation of air conditioner compressors and other key components by stabilizing voltage input, and prevent damage caused by abnormal voltage.

Large air conditioning systems usually consume more power and have higher voltage requirements. Socket protectors can prevent frequent voltage fluctuations from affecting the normal start-up and operation of air conditioners.

banner

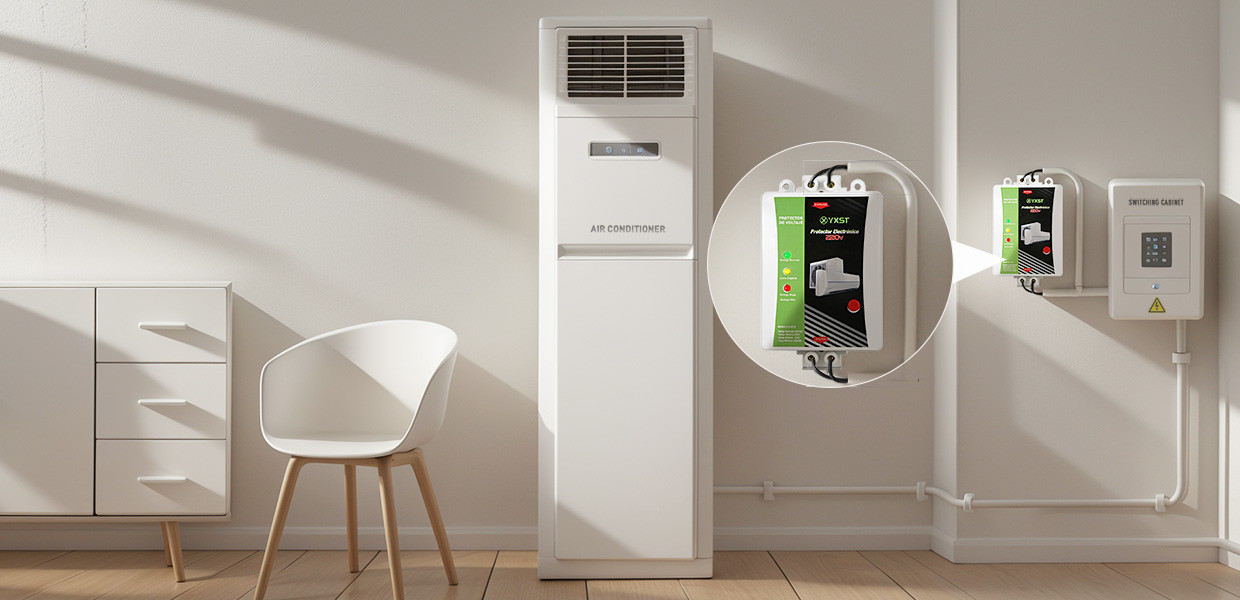

Wall-mounted air conditioners:

Wall-mounted air conditioners also require precise voltage control, especially in areas with large voltage fluctuations. With voltage protectors, users can use air conditioners more confidently, avoiding malfunctions or shortening the life of the equipment due to voltage problems.

The delayed start function of the voltage protector helps reduce the frequent start and stop of the equipment and extend the service life of the air conditioner.

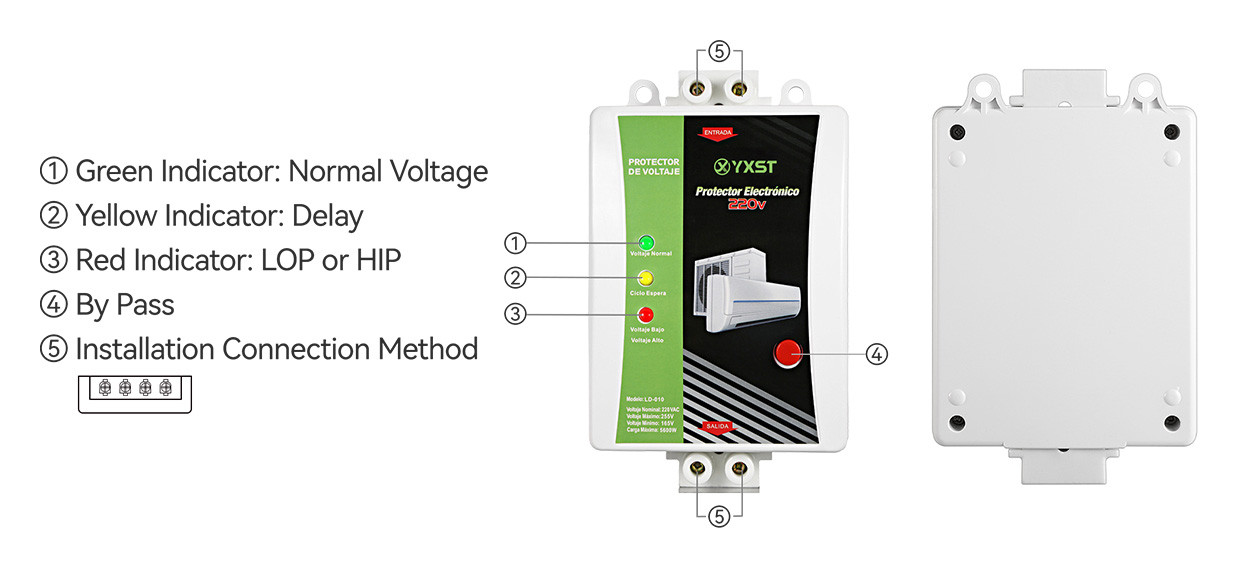

Instruction

Voltage Protector For Wall-Mounted Air Conditioner 1507 Specifications

Model No.	1507
Brand Name	YXST
Operating Voltage	220VAC
Operating Frequency	50 Hz-60 Hz
Over Voltage Cut-off	255VAC (could be customized)
Under Voltage Cut-off	165VAC (could be customized)
Delay Time for Reconnection	210s+Bypass (quick start)
Output Capacity	30 Amps , 6600 Watts
Connect By	Direct Wiring
Standard Package	Double Blister
Warranty	1 Year
