Wiring Voltage Protector Air Conditioner P30C 1512
Wiring Voltage Protector Air Conditioner P30C 1512
Wiring Voltage Protector Air Conditioner P30C 1512

Wiring Voltage Protector Air Conditioner P30C 1512

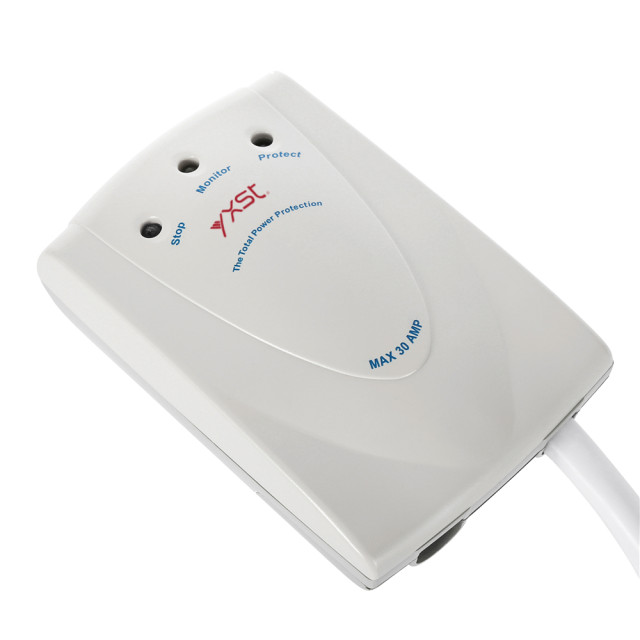

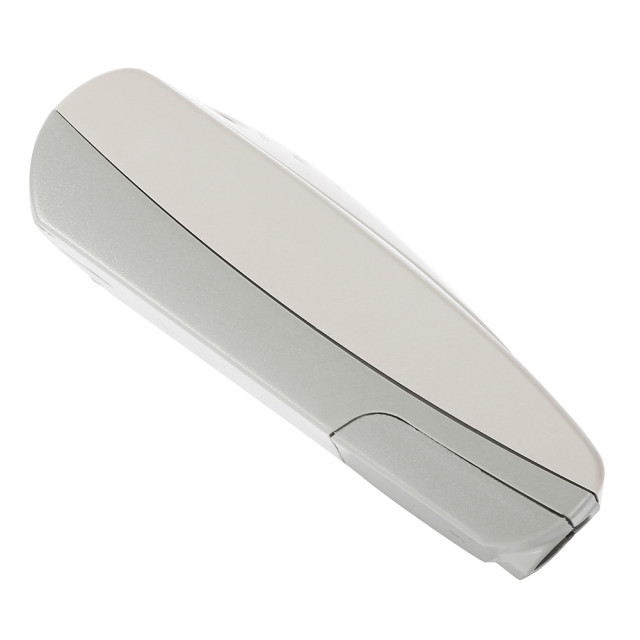

Wiring voltage protector air conditioner P30C 1512 is a highly efficient voltage protection device that can effectively prevent damage to air conditioning equipment caused by voltage fluctuations, overvoltage, undervoltage, etc.

Wiring Voltage Protector Air Conditioner P30C 1512 Parameters
Overvoltage cutoff: 260VAC (customizable)
Undervoltage cutoff: 165VAC (customizable)
Standard packaging: double blister

Online Inquiry



Wiring Voltage Protector Air Conditioner P30C 1512 Specifications


Model No. 1507
Brand Name YXST
Operating Voltage
220VAC
Operating Frequency
50 Hz-60 Hz
Over Voltage Cut-off
260VAC (could be customized)
Under Voltage Cut-off
165VAC (could be customized)
Delay Time for Reconnection 210s
Output Capacity
30 Amps , 6600 Watts
Connect By Direct Wiring
Standard Package

Double Blister

Warranty 1 Year


Wiring voltage protector air conditioner P30C 1512 installation and use:


Connection method: This type of voltage protector is generally installed by wiring, that is, the voltage protector is directly connected to the power line and connected to the air conditioner power supply.
Installation: In order to ensure that the wiring voltage protector air conditioner P30C 1512 can play the maximum protection effect, it is recommended to be installed by a professional electrician to ensure that the wire connector is safe and complies with electrical installation specifications.


Purchase and selection of air conditioner wiring voltage protector P30C 1512:



When selecting, ensure that the rated power of the air conditioner matches the rated power of the voltage protector. If the power of the air conditioner increases, the rated power of the selected voltage protector should be sufficient to support the maximum power demand of the equipment.
