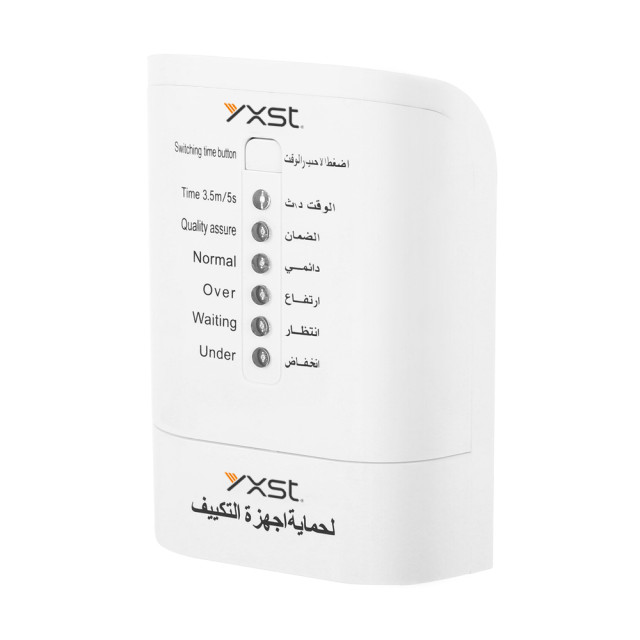

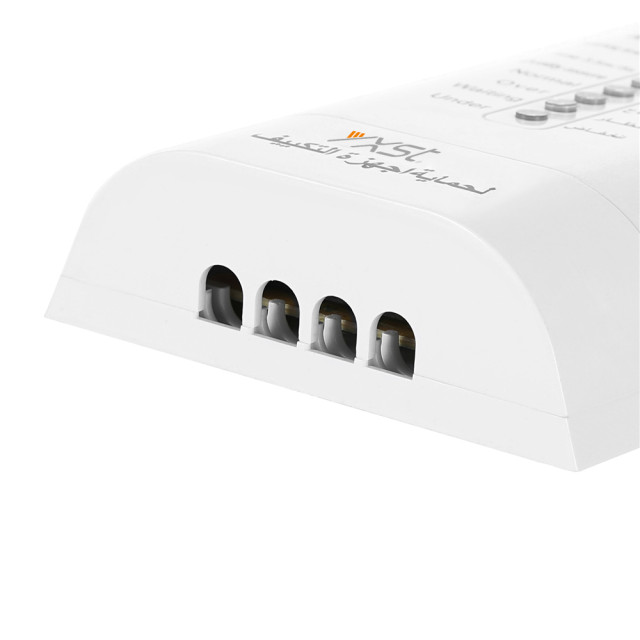

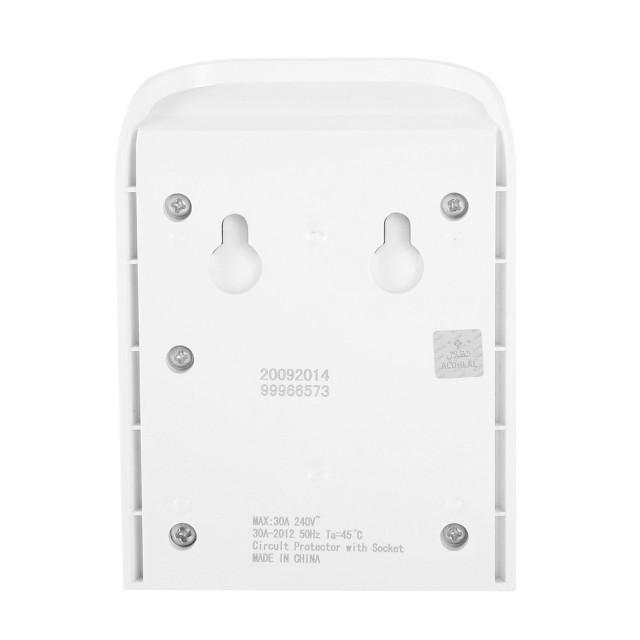

Wiring Type Fridge Voltage Protector AVS30 1604
Wiring Type Fridge Voltage Protector AVS30 1604
Wiring Type Fridge Voltage Protector AVS30 1604
Wiring Type Fridge Voltage Protector AVS30 1604
Wiring Type Fridge Voltage Protector AVS30 1604

Wiring Type Fridge Voltage Protector AVS30 1604

Wiring Type Fridge Voltage Protector AVS30 1604 produced by Yixing Factory not only protects against overvoltage and undervoltage, but also has the functions of preventing instantaneous voltage fluctuations and power-off delay, making it suitable for comprehensive protection of refrigerators.

Wiring Type Fridge Voltage Protector AVS30 1604 Features

● Overvoltage protection
● Undervoltage protection
● Prevent instantaneous voltage fluctuations
● Adapt to 220VAC refrigerators

Online Inquiry

As the power of the refrigerator increases, it is necessary to select a voltage protector with a large enough current capacity. It is necessary to ensure that the rated current of the wiring type refrigerator voltage protector AVS30 1604 matches the starting current and working current of the refrigerator.


Wiring Type Fridge Voltage Protector AVS30 1604


Wiring Type Fridge Voltage Protector AVS30 1604 Specifications


Model No. 1604
Brand Name YXST
Operating Voltage
220VAC
Operating Frequency
50 Hz-60 Hz
Over Voltage Cut-off
260VAC (could be customized)
Under Voltage Cut-off
165VAC (could be customized)
Delay Time for Reconnection 5s/210s
Output Capacity
30 Amps , 6600 Watts
Connect By Direct Wiring
Standard Package

Double Blister + Card or Color Box

Warranty 1 Year


Things to note when choosing Wiring Type Fridge Voltage Protector AVS30 1604:


Voltage and current parameters: Make sure the working voltage and current of the protector can match the rated voltage and power of the refrigerator. Most home refrigerators use 220V voltage, but you also need to confirm the rated power and current range of the protector.

Working range of the protector: Make sure the voltage protection range of the protector is suitable for the local power grid environment. For example, if the voltage fluctuation in your area is large, you should choose a protector that can adapt to a larger voltage fluctuation range.

Installation: The 1604 wiring-type voltage protector needs to be directly connected to the power line, so it should be installed by a professional electrician to ensure that the wiring is correct and meets safety standards.
